60m HDMI Extender over Single Cat5e/6 Support 1080P60Hz POC EDID
Introduction
LINK-MI LM-EX74 60M HDMI Extender transmits digital audio and video over Cat5e/6 Cable. Its transmission distance is up to 60m. It comes with POC, EDID function.
Features
1.High definition resolution up to Full HD 1080p@60hz YUV4:4:4
2.Transmit over 60m CAT5e/6 without signal loss.
3.Supports 3D.
4.EDID management function with Copy and Built-in EDID.
5.Support LPCM up to 7.1/24bit/192khz.
6.Support bi-direction POC(60m distance when RX powered by TX; 30m when TX; powered by RX).
7.Support factory reset function.
Specification
| Operating Temperature Range | 0 to +40°C (32 to +104°F) |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 volts p-p(TTL) |
| Support Video Format | DTV/HDTV:720P/1080i/1080P 3D video |
| Video Output | HDMI |
| Support Audio Format | DTS-HD Master Audio,Dolby true-HD etc. |
| Transmission Distance | 60m single CAT5e/6 without signal loss |
| Power consumption | 2watts(Maximum) |
| Dimension (L×W×H) | TX: L79.3xW68xH16.5mm; RX: L79.3xW68xH16.5mm |
| Net Weight | 232g |
| Note: Specifications are subject to change without notice |
Connection Diagram

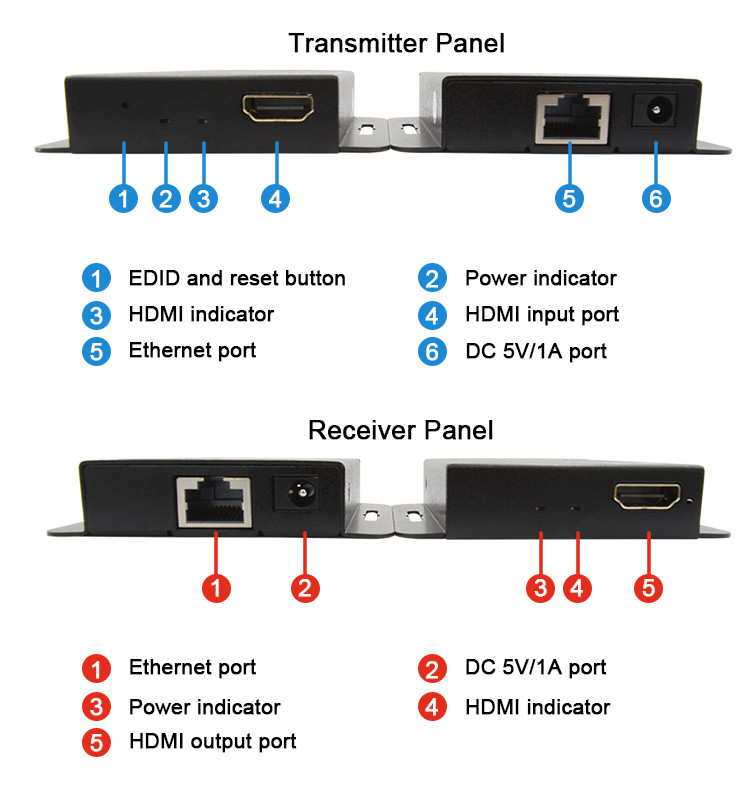

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EX74 60m HDMI Extender 1080P POC.pdf
