70M 4X4 HDMI Matrix with IR Matrix Function 18Gbps 4K@60Hz HDMI 2.0b POC
Introduction
LINK-MI LM-MX44-70 The 18Gbps 4x4 HDMI Matrix can connect four HDMI sources to eight displays. It features four HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously.
It supports the transmission of video (resolution is up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.
Connect a CAT Receiver to each of the CAT-Cable outputs to extend the HDMI signal up to 230ft/70m for multi-room connectivity. Each HDMI output supports 4K2K to 1080P downscaler independently.
The product supports one-way IR matrix function. Besides, it can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
Feature
1. HDMI 2.0b and HDCP 2.2/1.x compliant
2. Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
3. 4 HDMI inputs, 4 HDMI & CAT mirrored outputs
4. HDMI ports support 18Gbps lossless uncompressed video bandwidth
5. Support 4K->1080P Down Scaler for each output port
6. HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
7. CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
8. HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
9. Advanced EDID management and CEC control are supported
10. 12V POC on all CAT ports
11. Support one-way IR matrix function
12. Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Specification
| Model No. | LM-MX44-70 |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2/1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| Transmission Distance | 230ft / 70m (via a single CAT6 cable) |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connection |
| Matrix | Inputs: 4 x HDMI Type A [19-pin female] Outputs: 4 x HDMI Type A [19-pin female] 4 x CAT port [RJ45] 4 x IR OUT [3.5mm Stereo Mini-jack] Controls: 1 x TCP/IP [RJ45] 1 x RS-232 [3-pin phoenix connector] |
| CAT Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT port [RJ45] Output: 1x HDMI Type A [19-pin female] Control: 1x SERVICE [Micro USB, Update port] |
| Mechanical |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Matrix: 320mm (W) × 100mm (D) × 36mm (H) Receiver: 61mm (W) x 88mm (D) x 18mm (H) |
| Weight | Matrix: 915g, Receiver: 155g |
| Power Supply | Input: AC 90 - 260V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 19.68W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Resolution /Cable length | HDMI IN/OUT |
| 4K60-Feet /Meters | 16ft /5M |
| 4K30-Feet /Meters | 32ft/10M |
| 1080P60-Feet /Meters | 50ft /15M |
| The use of "Premium High Speed HDMI" cable is highly recommended. |
| Note: Specifications are subject to change without notice |

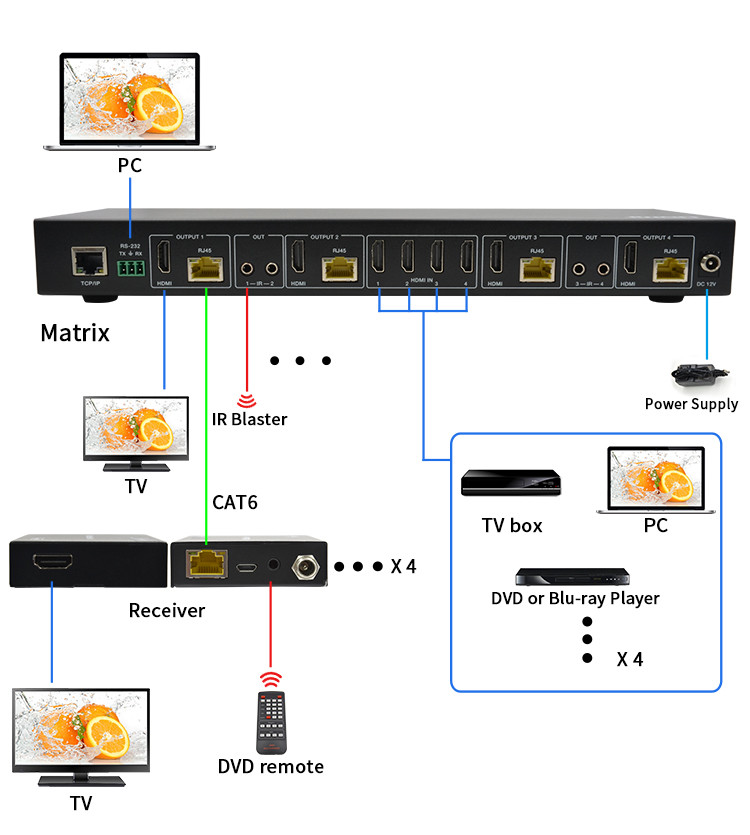

Connection Diagram
