4K HDMI Audio Extractor Support EDID 3D for Apple TV satellite receivers
Introduction
LINK-MI LM-HC03 is a 4K HDMI Audio Extractor. It is used to extract digital HDMI audio signal from HDMI input. It supports resolution up to 4K@60Hz YUV 4:4:4
Features
1. Three Audio EDID Settings: Auto/2.0 CH/5.1CH
2. Extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output
3. Support PCM and Dolby DTS
4. Support resolution up to 4K@60Hz YUV4:4:4
5. Support deep color up to 36bit
6. HDCP2.2/1.4 Compliant
7. Support CEC
8. Support firmware updating through USB port
Specification
| Operating Temperature Range | -5 to +35℃(+23 to +95℉) |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 volts p-p(TTL) |
| Support Video format | 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video |
| Support Video Color Format | xv-YCC/deep color 36bit |
| Support Audio Format | PCM,DTS-HD Master Audio,Dolby true-HD etc. |
| Data transfer speed rate | 18Gbps(Maximum) |
| Power consumption | 2watts(Maximum) |
| Dimension (L×W×H) | 104.4x64x28.3mm |
| Net Weight | 175g |
| Note: Specifications are subject to change without notice |

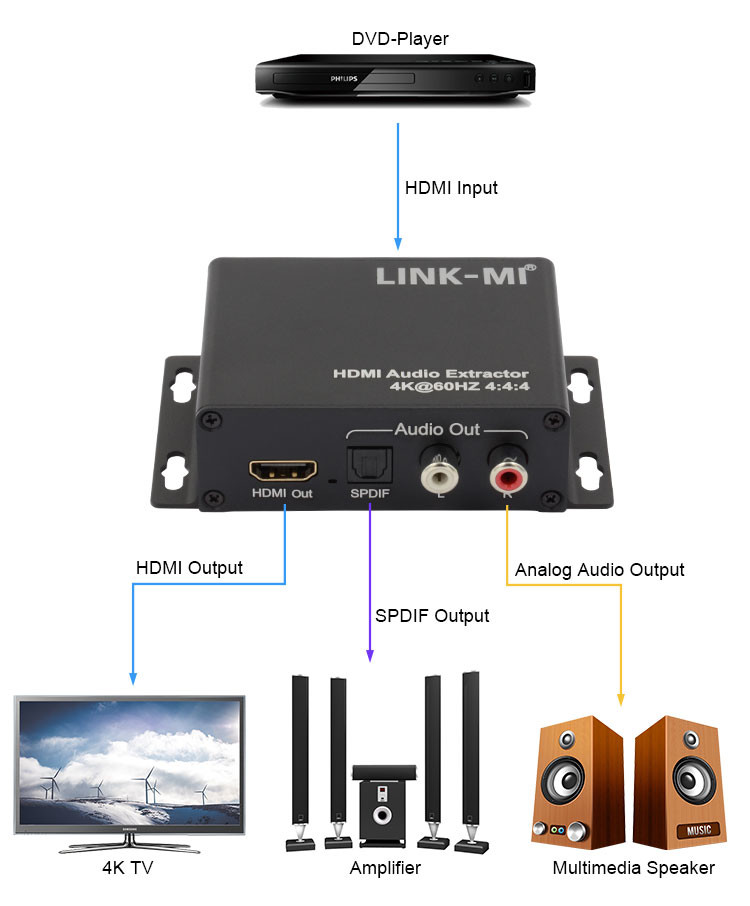

Connection Diagram
Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-HC03 HDMI 2.0 Audio Extractor, 4K@60Hz YUV444.p...
