1/8 VGA Splitter 1X8 Extender 100m 200m 300m 1 to 8 Video Audio Extender
Introduction
LINK-MI LM-108T 8 channel VGA Video & Audio transmitter allowing extension of highresolution VGA video and high-fidelity audio over UTP cable. 8 channel VGA video and audio transmitter receiver need to match, can match with any of the 100m-200m-300m receiver. The transmitter not only work as a 8 channel distribution amplifier, but also provides local video & audio output for local use.
Features
1. 350MHz signal transmission bandwidth.
2. High video resolution up to 1920×1080 pixels.
3. Powered by either power adaptor.
4. Support VGA, SVGA, XGA, SXGA, WXGA ,UXGA and multi-sync monitors.
5. Built-in surge&transient protection with grounding rod on front panel.
6. Super interference rejection.
Specification
| Model No. | LM-108T |
| Video properties |
| Video Input Connector | 1* 15pin HD15 male; Impedance: 75Ω |
| Local Video Output connector | 1* 15pin HD15 male; Impedance: 75Ω |
| UTP Cable Connector | 8* RJ-45; Impedance: 50Ω |
| Signal Transmission Band | >350MHz(-3db) |
| Linear Distortion | <3% |
| Synchronous signal | 0-5V,TTL PWL |
| Synchronous signal band | 1K-200KHz |
| DDC2 | Virtual DDC |
| Audio properties |
| Connectors | 2* 3.5mm Audio Jacks |
| Input Impedance | 10kΩ |
| Output Impedance | 600Ω |
| Transmission Band | 10-20KHz |
| Power properties |
| Adaptive Voltage Arrange | 12V DC(power adaptor) |
| Power Consumption | <3.5w |
| Connectors | DC Jack,USB-B |
| USB Protecting Current | 1000mA |
| Environmental |
| Operating Temperature | 0~70 |
| Relative Humidity(non-condensing) | 10~85% |
| Storage Temperature | -10~80 |
| Accessories |
| Power Adaptor | Power supply input: 100-240V AC Power supply output: 12V DC/ 1Amp Wire Length:2m |
| Casing |
| Gross Weight | 0.8kg |
| Casing Volume(LWH) | 575*275*90mm |

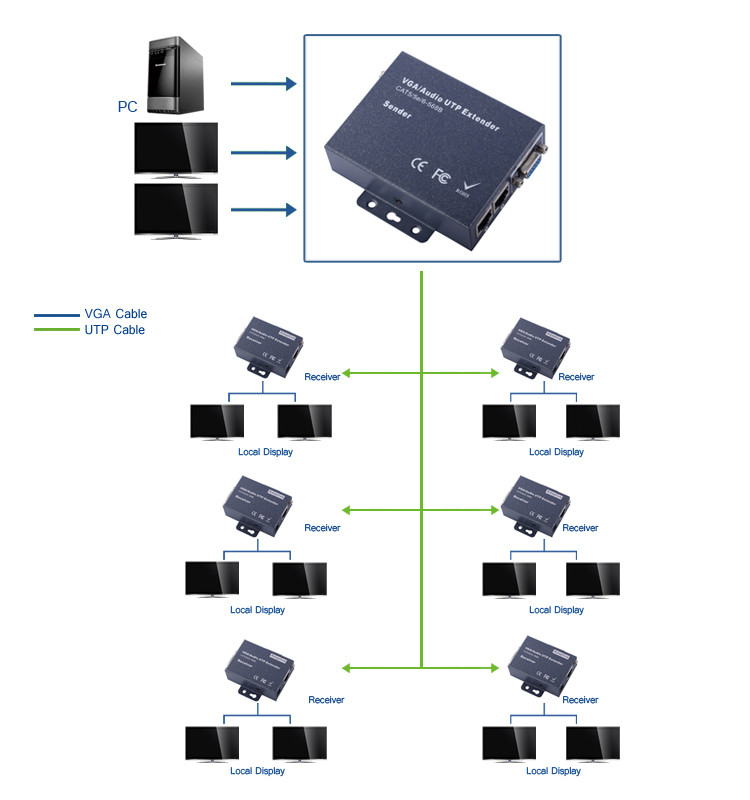

Connection Diagram
Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-108T 8 Channels VGA Extender Splitter.pdf
