4K Video Wall Controller 2x2/1x4/4x1/10x10 Splicing Display HDMI/USB Type C/DVI
Introduction
LINK-MI LM-VW02B is a professional 4-channel ultra HD 4K Video Wall Controller. It's used to distribute signals to multiple display units for splicing display. It comes with 4 input signals like 2 HDMI / 1 USB Type C / 1 DVI; with 4 channels HDMI outputs, and extra 1 HDMI Loop output for single display or cascading. User can switch any one of the 4 input signals to display on 4 TV monitors to make a large 2x2 video wall or 1x4, 4x1...display modes, and max 10x10 video wall in cascade connection.
Meanwhile, it also supports 1x4 HDMI splitter mode, SPDIF and Analog audio extraction, highest UHD resolution up to 3840x2160@30Hz, 180° rotation, EDID management. User can control it easily via remote, panel buttons, RS232 command and Web GUI control. It's in 1U rack design and easy to install.
Features
1. Support USB TYPE-C /DVI /2 HDMI input.
2. Support 4K 2x2 video wall, cascading to create 2x3, 3x4 and max 10x10 video wall.
3. Support output image 180° rotation.
4. Support highest resolution up to 4K@30HZ 4:4:4 for Type-C and HDMI inputs, 1920x1200 for DVI input.
5. Support EDID management:Two default EDID: 4K30HZ, 1080P.
6. Support HDCP2.2/1.4.
7. Support panel button; IR remote; RS232 command and Web GUI to control.
8. Support SPDIF andAnalog audio extraction
9. 1U rack design, easy installment.
Specification
| Model No. | LINK-MI LM-VW02B |
| Input Ports | 2x HDMI, 1x USB TYPE-C, 1x DVI |
| Output Ports | 4x HDMI, 1x HDMI Loop out for single display or cascade connection) 1x SPDIF, 1x Analog Stereo Audio |
| Control Ports | 1x RS232, 1x Ethernet |
| HDCP | HDCP 2.2/1.4 |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Video Format | Ultra HD TV/FH DTV: 4K@30Hz/1080P |
| Audio Format | LPCM 16bit, 24bit, 44.1KHz/48KHz |
| Control Methods | Panel buttons; IR remote; RS232 command and Web GUI |
| Video Wall Modes | Preset 1x1; 2x2; 4x1; 1x4...etc. Cascade to make 3x2-1; 3x2-2; 4x2-1; 4x2-2; 4x3-1; 4x3-2; 4x3-3 Cascade: 3x3; 4x4; 4x6; 5x6; 6x6 and so on, max 10x10 video wall |
| Other Functions | 1x4 HDMI Splitter Mode, 180° rotation, EDID Management, Audio Extraction... |
| Power Supply | DC 12V 2A |
| Power Consumption | 15watts (Maximun) |
| Operating Temperature | 0 to +40°C (32 to +104°F) |
| Operating Humidity | 5 to 90 % RH (no condensation) |
| Material | Metal Enclosure |
| Color | Black |
| Dimension | 438mm(L)x190mm(W)x44mm(H) |
| Weight | 2.5KG |
| Note: Specifications are subject to change without notice |

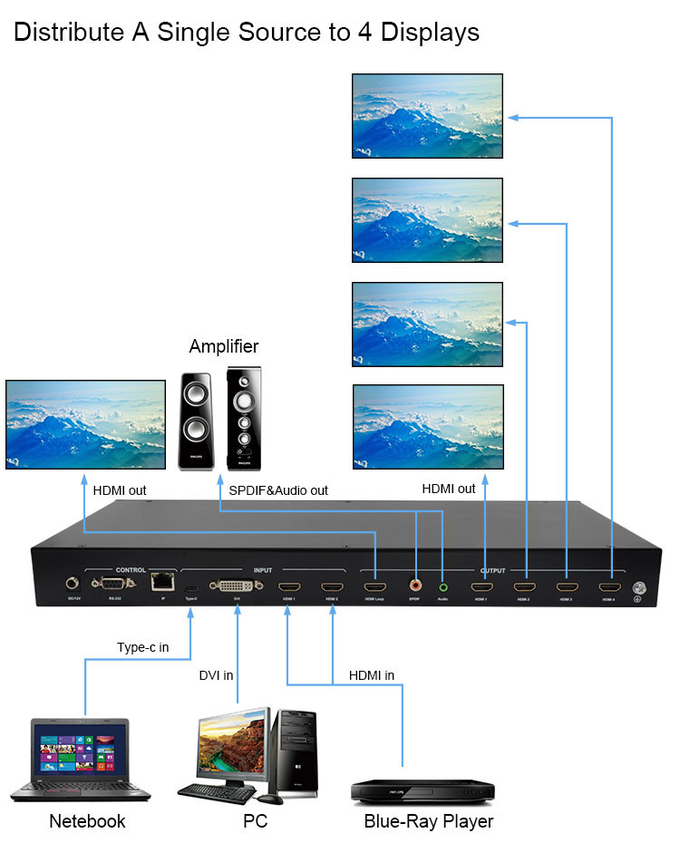

Connection Diagram
